Hydro Blasting Machine High Pressure Cleaner For Ship Cleaning Hydro Blaster

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6.You can choose the dive way from diesel engine,gasoline engine,electric motor.
Electric motor can be 3 phase voltage from 380v to 480v,50-60hz.

Hydro Blasting Machine High Pressure Cleaner For Ship Cleaning Hydro Blaster

Characteristics as below:

Product Description

Industrial High Pressure Cleaner is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.




  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Specific components within a water jetting system include abrasive injectors, pressure generators, blast cabinets or booths, water guns, and water tanks. Abrasive injectors can convert a water jetting system into an abrasive blaster. The injection or metering system controls the amount of abrasive pushed into the air stream. In large systems, the delivery system and injection system may be separate components. Pressure generators increase the pressure of the carrier fluid (water or air). Plunger-type intensifier pumps are commonly used to generate high pressure water for water jet cutting, wet or water abrasive blasting and non-abrasive pressure washing or rinsing.

Standard and custom high-pressure Hydro Laser units are built with Tritan triplex or quintuplex pumps. Quintuplex and triplex pumps are positive-displacement reciprocating pumps that are configured with three or five plungers. High pressure water pumps used in high pressure water blasting and water jetting operations.

These hydro laser high-pressure water pumps can be driven by electric motor, diesel, or gasoline engine. A complete system package can be ready to easily take care of your next difficult cleaning job.

Applications

The high pressure hydro blaster is for a ship deck high pressure cleaning.

when a ship have a long trip,the deck is very dirty and rusty,so it needs a high pressure water jet to remove the dirty and the rust.

then a high pressure water jet with 1000-1500bar can do the clean jobs.

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

Diesel Engine Drive Industrial High Pressure Cleaners High Pressure Cleaning Machine As a rust removing equipment,

it uses the high pressure water jet at 1000bar to jet the rust,and peel of the rust from the surface.

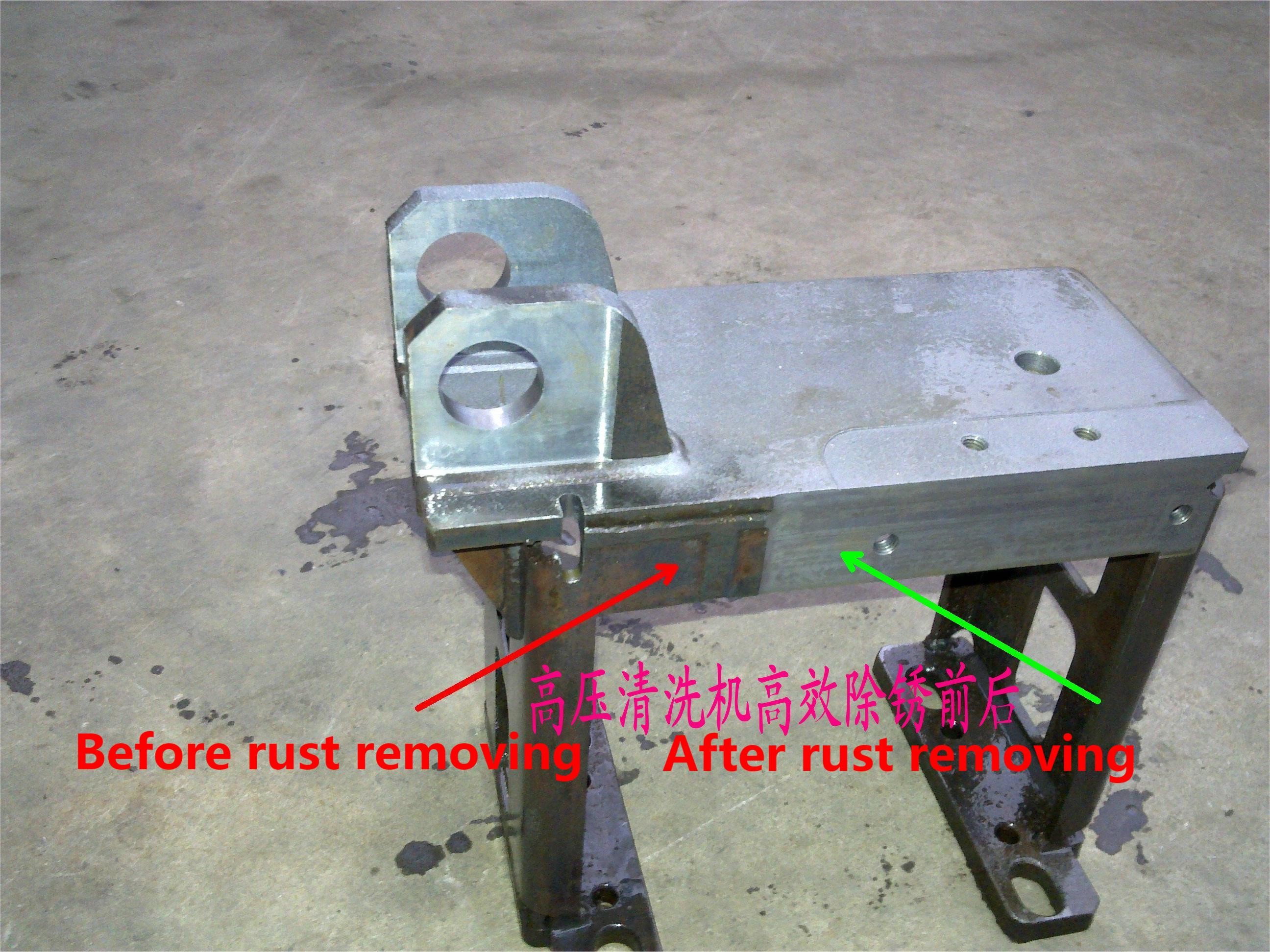

the photo shows the before rust removing and after high pressure water jet rust removing.

sometimes with 1000bar high pressure water jet is enough to remove the rust.

Customer gave some comments on our products:


FAQ

Hydro Blasting Machine High Pressure Cleaner For Ship Cleaning Hydro Blaster

Q1. What about the lead time?
A: 8-10 working days for mass production.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Chengdu Sincere Da Machinery Co.Ltd,a company with 40 years professional manufacturing factory,which located in Chengdu China.a place where is famous for the pandas.

from year 1982  set up,we are making the triplex plungers pump all the time.now we have a 20000sq. meters factory,and we can make the high pressure pump pressure from 100bar to 6000bar,water flow from 10L/min to 400L/min. the pumps are widely used in oil refinery pipes cleaning,heat exchangers pipes cleaing,ship hull cleaing,oil paitings removing,rust removing,and so on......

meanwhile our pumps can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing.and so on.....

As a factory which is over 200 peope,we pay attention to the quality control,we make the pumps working safety,stable,easy to fix at customers hands.we can supply the good services to customers all the time,once customers find the machines have problem,we can supply the way to solve immediately.

so many foreign customers always give highly comments of our factory.
