15kw 850bar Industrial High Pressure Cleaning Machine High Pressure
Cleaner
Details:
1. Power end crankshaft housing is made by the cast iron.it is
stronger than the aluminium alloy.
2. Cross head is made by the Babbitt hard alloy.it has a long
working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr.it can
work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall,so it is easy
to fix when the parts broken.

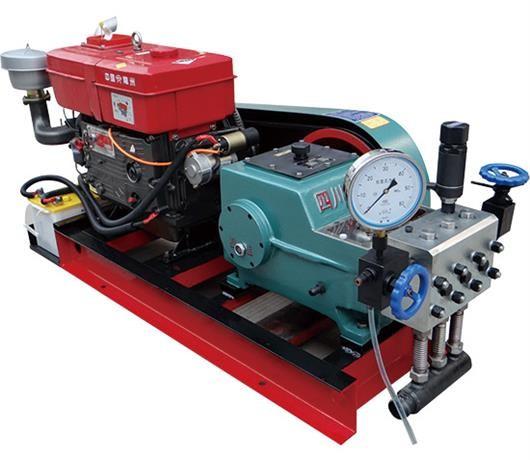

5. For some outdoor use purpose,we can make it driven by the diesel
engine or the gasoline engine.
6. You can choose the dive way from diesel engine,gasoline
engine,electric motor.
Electric motor can be 3 phase voltage from 380v to 480v,50-60hz.
15kw 850bar Industrial High Pressure Cleaning Machine High Pressure
Cleaner
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm |
| LF-35/24 | LF | 35 | 15 | 26 | 46 |
| LF-30/28 | 280 | 30 | 15 | 24 | 46 |
| LF-25/32 | 320 | 25 | 15 | 22 | 46 |
| LF-20/40 | 400 | 20 | 15 | 20 | 46 |
| LF-16/50 | 500 | 16 | 15 | 18 | 46 |
| LF-13/63 | 630 | 13 | 15 | 16 | 46 |
| LF-10/70 | 700 | 10 | 15 | 14 | 46 |
| LF-35/32 | 320 | 35 | 22 | 26 | 46 |
| LF-20/50 | 500 | 20 | 22 | 20 | 46 |
| LF-16/85 | 850 | 16 | 22 | 16 | 46 |
| LF-13/100 | 1000 | 13 | 30 | 16 | 46 |
Product Description
Industrial high pressure cleaner is an equipment which is used to
clean the surface of objects,the machine with high pressure water
jet by means of a power device. It can peel off the dirt ,wash it
away to achieve the purpose of cleaning the surface of objects.
Because it uses high-pressure water column to clean dirt,
high-pressure cleaning is also recognized as the most scientific,
economic and environmentally friendly cleaning method in the world
compare to the chemical cleaning.
The purpose of a water pump is to move water not containing
suspended solids or particulates. Water pumps handle ground water,
potable and salt water. High Pressure water pumps are widely used
in water jetting applications.
Water jetting equipment using high pressure water pumps is used to direct high pressure water streams against material to
clean or cut it. The streams of water released by water jetting and
water blasting equipment is normally 5,000 PSI to 40,000 PSI. In an
efficient water jetting system, pressure is vital consideration.
Typically, hardened deposits respond better with high pressure
water pumps, and softer materials are best removed with lower
flows.
Water jetting and water blasting equipment is used for cleaning or
demolition of products made of metal, wood, concrete, stone,
plastic, glass or other building materials.
Specific components within a water jetting system include abrasive
injectors, pressure generators, blast cabinets or booths, water
guns, and water tanks. Abrasive injectors can convert a water
jetting system into an abrasive blaster. The injection or metering
system controls the amount of abrasive pushed into the air stream.
In large systems, the delivery system and injection system may be
separate components. Pressure generators increase the pressure of
the carrier fluid (water or air). Plunger-type intensifier pumps
are commonly used to generate high pressure water for water jet
cutting, wet or water abrasive blasting and non-abrasive pressure
washing or rinsing.
Standard and custom high-pressure Hydro Laser units are built with
Tritan triplex or quintuplex pumps. Quintuplex and triplex pumps
are positive-displacement reciprocating pumps that are configured
with three or five plungers. High pressure water pumps used in high
pressure water blasting and water jetting operations.
These hydro laser high-pressure water pumps can be driven by
electric motor, diesel, or gasoline engine. A complete system
package can be ready to easily take care of your next difficult
cleaning job.
Optional Equipment:
Hydro Dump Gun - Constructed Entirely of Stainless Steel.
Jet Tips - Stainless Steel: Two (2) Straight Round Pattern or Two
(2) Flat Fan Pattern.
Discharge Gauge.
Relief Valve - Stainless Steel Construction and Adjustable.
Discharge Hose - 50 ft Section
Units are mounted on trucks, trailers, or skids.
A variety of accessories are available to adapt to specialized
cleaning requirements. Hoses, Cleaning Guns, Jet Cleaning Heads:
Single Orifice, Multi Orifice, Flat Fan, Self-Propelled
Fulfill a multitude of cleaning applications:
Water Jetting, Water-Chemical Cleaning, Water-Sand Cleaning, Water
Power Sewer Cleaning & Flushing
Material that can be removed quickly, efficiently and cheaply with
a Hydro Laser: Paint, Grease, Sludge, Slage, Core Sand from Castings, Ceramic
Residue, Asphalt, Hydrocarbon Residue, Acid Residue, Mineral
Build-Up, Rust, Marine Growth, Polymerized Material, Latex, Scale
from Steel, Oil, Chemical Residue, and more...
Features
This machine is made up of mainly by high pressure reciprocating
pump, power units and cleaning accessories etc.
1) High pressure reciprocating pump: the pump is horizontal triplex
plunger pump, driven by electric motor, made up of by power end and
fluid end.
- Power end: it is made up of by belt pulley(couplings), crankshaft
and connecting rod etc. Electric motor or diesel engine,or gasoline
engine driven the crankshaft and reduces its speed, and crank link
mechanism will change whirling movement to straight line
reciprocating movement.
- Fluid end: it is made up of by plunger set, high pressure cylinder,
pump body and water input and output valves etc. High pressure
cylinder is fixed on crankcase while connecting rod drives plunger
to do reciprocating movements, which make volume in cylinder do
cyclical change. When plunger is in-sucking stroke, the volume in
cylinder increases, water output valve closes, local vacuum is
formed. Working media enter into high pressure cylinder by going
against water input valve under high atmospheric pressure. When
plunger is in discharging stroke, water input valve closes, and
plunger transfer the working media to pump body by water output
valve, to pressure regulating valve, finally to high pressure spray
gun by high pressure hose.
GUARANTY OF QUALITY
We offer products of our own design and production and we guarantee
it is high quality. A quality control of performed works is one of
the main advantages of our Company. Important components of
effective work: high qualification of our engineers, strict
implementation of technical standards, application of quality
materials, use of the most modern equipment and software.
Strict materials incoming (quality) control and acceptance tests
Laboratory and bench testing
100% compliance with technology, international standards
Application of the most modern high-tech QC tools
All manufactured equipment passes bench and field tests
International quality level
Positive feedbacks from our customers
It is extremely important for us that all our customers are 100%
satisfied with the quality of our work!
INNOVATIVE AND TECHNOLOGY LEADER
Our mission is to continuously innovate, develop and offer the most
efficient equipment for our customers.
Own design office
Technology Innovation Center
The of Companies employs more than 100 qualified and experienced
engineers, designers and technicians
Own laboratory and test benches
Operative analysis and adjustment of design.
Applications
The pumps are widely used in oil refinery pipes cleaning, heat
exchangers pipes cleaning, ship hull cleaing,oil paitings
removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines
pressure testing,gas steel bottles explosion pressure testing,all
kinds of the tubes pressure explosion testing, and so on.
Customer gave some comments on our products:
FAQ
15kw 850bar Industrial High Pressure Cleaning Machine High Pressure
Cleaner
Q1. What about the lead time?
A: 8-10 working days for mass production.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
