400bar Water Blasting Machine High Pressure Washer Water Cleaner Hydro Blasting Equipment For Sale Hydroblasting Machine

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

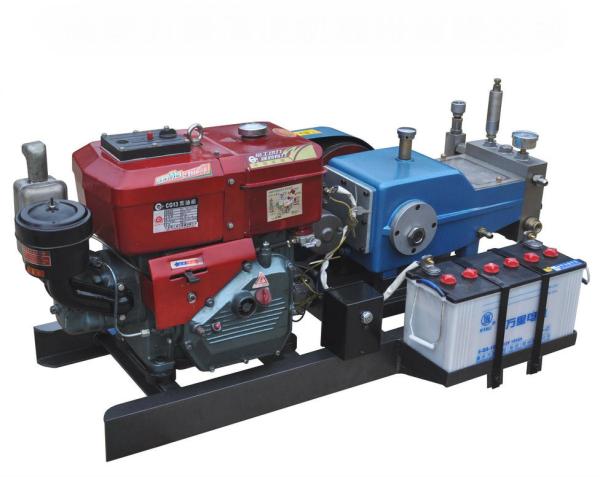

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

400bar Water Blasting Machine High Pressure Washer Water Cleaner Hydro Blasting Equipment For Sale Hydroblasting Machine

Characteristics as below:

Product Description

Industrial hydro blasting machine is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

This bareshaft pump is for the machine replace,or you choose the diesel engine to connect to the bareshaft pump.
find the right power of engine ,with the right RPM,make a coupling conect the pump to engine.connecting to other accessories like gun and high pressure hose.you can get the whole machine to use.

Optional Equipment:
Hydro Dump Gun - Constructed Entirely of Stainless Steel.
Jet Tips - Stainless Steel: Two (2) Straight Round Pattern or Two (2) Flat Fan Pattern.
Discharge Gauge.
Relief Valve - Stainless Steel Construction and Adjustable.
Discharge Hose - 50 ft Section

Units are mounted on trucks, trailers, or skids.

A variety of accessories are available to adapt to specialized cleaning requirements. Hoses, Cleaning Guns, Jet Cleaning Heads: Single Orifice, Multi Orifice, Flat Fan, Self-Propelled

Fulfill a multitude of cleaning applications:
Water Jetting, Water-Chemical Cleaning, Water-Sand Cleaning, Water Power Sewer Cleaning & Flushing

Material that can be removed quickly, efficiently and cheaply with a Hydro Laser: Paint, Grease, Sludge, Slage, Core Sand from Castings, Ceramic Residue, Asphalt, Hydrocarbon Residue, Acid Residue, Mineral Build-Up, Rust, Marine Growth, Polymerized Material, Latex, Scale from Steel, Oil, Chemical Residue, and more...

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.

  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.


• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.




Foreign customers who came to our factory to have a visit




Customers who is using our products and give us some comments:




FAQ

400bar Water Blasting Machine High Pressure Washer Water Cleaner Hydro Blasting Equipment For Sale Hydroblasting Machine

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Chengdu Sincere Da Machinery Co.Ltd,a company with 40 years professional manufacturing factory,which located in Chengdu China.a place where is famous for the pandas.

from year 1982  set up,we are making the triplex plungers pump all the time.now we have a 20000sq. meters factory,and we can make the high pressure pump pressure from 100bar to 6000bar,water flow from 10L/min to 400L/min. the pumps are widely used in oil refinery pipes cleaning,heat exchangers pipes cleaing,ship hull cleaing,oil paitings removing,rust removing,and so on......

meanwhile our pumps can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing.and so on.....

As a factory which is over 200 peope,we pay attention to the quality control,we make the pumps working safety,stable,easy to fix at customers hands.we can supply the good services to customers all the time,once customers find the machines have problem,we can supply the way to solve immediately.

so many foreign customers always give highly comments of our factory.
