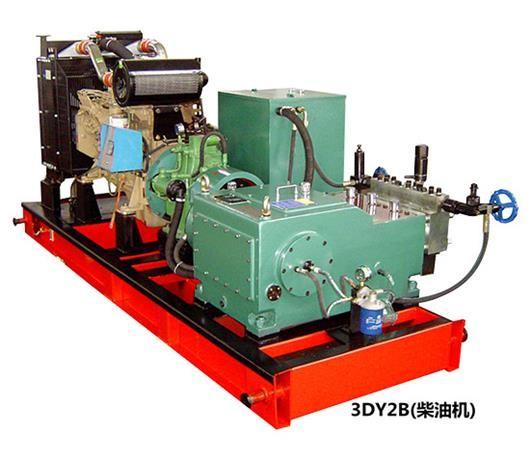

15000psi Industrial High Pressure Washers Hydro Jet Cleaning Machine For Oil Pipes Inside Clean

Intruduction of the high pressure washer:

Hydro Jet Cleaning Machin is such kind of the plunger pump,which is driven by the diesel engine or the electric motor.

To produce a super high pressure reaches 1000bar or higher.Using the high pressure water jet to strip the dirty to the surface of the objects.like rust removing,old paiting removing and so on.Compare to the traditional rust removing,like the sand blasting removing.

this kind of the high pressure water jet cleaning is known as environment protection.now it is more acceptable by people.

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6.It is for industrial cleaning or removing.it is heavy duty.
7.It is easy to fix once the wearing parts are broken

8.The cylinders use the new technology,it avoided the cylinders broken problems.

9.we can make according to customers request of the motor ,from 380V to 480v.50HZ TO 60HZ.

15000psi Industrial High Pressure Washers Hydro Jet Cleaning Machine For Oil Pipes Inside Clean

Characteristics as below:

Catalogue of 15000psi Industrial High Pressure Washers Hydro Jet Cleaning Machine For Oil Pipes Inside Clean

• Working principle:

This pump is the horizontal single-acting triplex plunger pump, components are dynamic end, hydraulic end, pressure regulating valve,and relief valve!

(1).The dynamic end (attached picture by the following)componented by the pulley, crankshaft, connecting bar , etc. dynamic power produced by the belt and driving pulley and also decrease the speed.driving the crankshaft rotary,and the connecting bar makes the rotary be direct!

(2)The hydraulic end (attached picture by the following)componented by the plungers,cylinders,pump body,water inlet and outlet valves,etc.the cylinders are fixed on the crank,the connecting bar drive the plunger do reciprocating movement in the cylinder which makes the content of cylinders periodic change.when the plungers are the sucking stroke,the the content of cylinders enlarge,and the water outlet valves close,forming a vacuum,the medium comes into the cylinders upon the pressure of the air;when the plungers are the eduction stroke,the water inlet valves close,the plungers make the medium go into the pump body through the water outlet valves,and then go into the pressure regulate valve,and last comes out from the high pressure hose!

(3)The relief(safety valve) valve (attached picture by the following) Relief valve is high-pressure pump of protection device, when the nozzle blocking, relief valve open, high pressure water flow, protecting the machine was not damaged by the over pressure. the customers do not touch that!

(4)The pressure regulating valve (attached picture by the following)the pressure regulating valve is used to adjust the outlet pressure and keep the system pressure.when the handwheel clockwise rotation pressure-regulating valve core, with the gap seat decreasing, overflowing decreases, machine pressure increases. When the handwheel counterclockwise, flow capacity increase and the pressure drops!

Product Description

Industrial high pressure washer is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.




  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

Diesel Industrial High Pressure Washers High Pressure Washing Machine For Pipelines Cleaning,This equipment needs to use a backflush nozzle to go inside to the pipes.the nozzles should be smaller than the heat exchangers pipes.

when start the high pressure cleaning machine,the backflush nozzles can go into the pipes itself by the water jet push power.

then the nozzles water jet can clean the inside of the pipes.

As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers,they are from Australia and so on......

Applications:

it is widely used in ship cleaning,rust removing,concrete removing ,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean,cment plant kiln,for the papaer making factory which is cleaning the dirty paper pulp......

Comments from customers who is using the products 15000psi Industrial High Pressure Washers Hydro Jet Cleaning Machine For Oil Pipes Inside Clean

Comments from customers:





FAQ

15000psi Industrial High Pressure Washers Hydro Jet Cleaning Machine For Oil Pipes Inside Clean

Q1. What is brand name?
A: Our brand name is LIFENG which is very famous in China.and also famous in East Asia.

Q2.are you a factory or a trading company?
A: we are a 40 years old manufacturing factory which located in Chengdu ,China.

Q3. How do you ship the goods ?
A: Ship by sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Chengdu Sincere Da Machinery Co.Ltd,a company with 40 years professional manufacturing factory,which located in Chengdu China.a place where is famous for the pandas.

from year 1982  set up,we are making the triplex plungers pump all the time.now we have a 20000sq. meters factory,and we can make the high pressure pump pressure from 100bar to 6000bar,water flow from 10L/min to 400L/min. the pumps are widely used in oil refinery pipes cleaning,heat exchangers pipes cleaing,ship hull cleaing,oil paitings removing,rust removing,and so on......

meanwhile our pumps can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing.and so on.....

As a factory which is over 200 peope,we pay attention to the quality control,we make the pumps working safety,stable,easy to fix at customers hands.we can supply the good services to customers all the time,once customers find the machines have problem,we can supply the way to solve immediately.

so many foreign customers always give highly comments of our factory.
